CDR 7000 & CCP with Ind arm |
 |
Cdr 7000 MAIN FEATURES
- Interfaced with MRK 3100P/ CCP 3100/ CLM 3100P
- Full data transmission from Lensmeter / MRK
- Convenient control panel for full operations
- Binocular balance tests
- Aniseikonia tests
- Strabismus tests
- stereopsis test
- Full Programibility
- Multi System Networking.
|
|
SPECIFICATION |
Measurement Range |
Sperical Lens |
-29.00 ~ +26.75D (Regular)
-19.00 ~ 16.75d (Cross Cylinder or Prism test)
(0.12D/0.25D/0.5D/1.0D/2.0D/3.0D/4.0D increments) |
Cylinder Lens |
0.00 ~ + 8.75D (0.25D/0.5D/1D/2D/3D increments) |
Cylinder Axis |
00 ~ 1800 (10 / 50 / 150 increments) |
PD |
48 ~80MM (0.5 / 1mm increments)
(Near working distance : 35 ~70cm) |
Rotary Prism |
0 ~ 2 (0.1 / 0.2 / 0.5/ 1 / 2 increments) |
Cross Cylinder |
+ 0.25D
+ 0.50D
+ 0.25D Dual Cross Cylinder (Split prism lens) |
Retinoscope |
+ 1.5D, + 2.0D( Measurement Distance 67cm, 50cm) |
|
|
|
Auxiliary Lens |
Occuluder |
|
Pin Hole |
1mm dia |
Madox Rode |
Right Eye (Red, Horizontal), Left Eye (Red, Vertical) |
Red / Green Filter |
Right Eye (Red), Left Eye (Green) |
Polarizing Filter |
Right Eye : (1350 , 450) Left Eye: (450 , 1350) |
Split Prism |
Right Eye (6 BU)
Left Eye(10 BI : upto 5 complement |
PD Check Lens |
|
Fixed Cross Cylinder |
(+ 0.50D, Fixed with the axis set at 900 |
|
|
|
Dimensions |
Refractor |
445(W) X 255 (D) X 133 (H) mm |
6.9 kg |
Congtoller |
220(W) X 259 (D) X 188 (H) mm |
1.3 kg |
Junction Box |
350(W) X 240 (D) X 70(H) mm |
2.2 kg |
Power Supply |
AC 100 ~ 120V/ AC 220 ~ 240V |
50 / 60 Hz |
Power Consumption |
110VA |
|
|
|
| |
|
 |
 |
|
| |

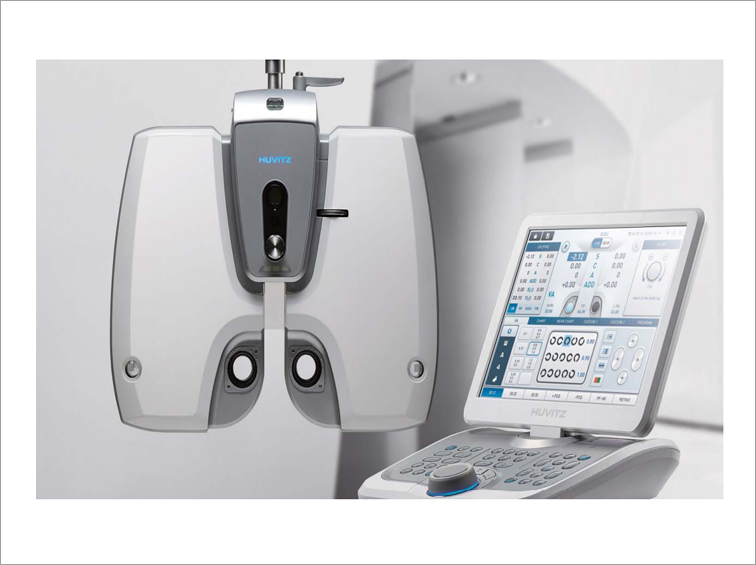

HDR7000 & HCP 7000 with ind arm |
 |
HDR 7000 Digital Phoroptor
Sleek modern Design, with a high point of color touch screen LCD with attractive GUI for an easier and elaborate eye test.
- Can be connected to any HuvitzAutorefractomter
- Color Touch Screen with intuitive GUI
- Wide viewing angle of 40˚ for a real perspective view
- Sensor for proper patient adjustment
- Magnetic Near vision rod with reading light.
|
| |
|
|
|
|
|
