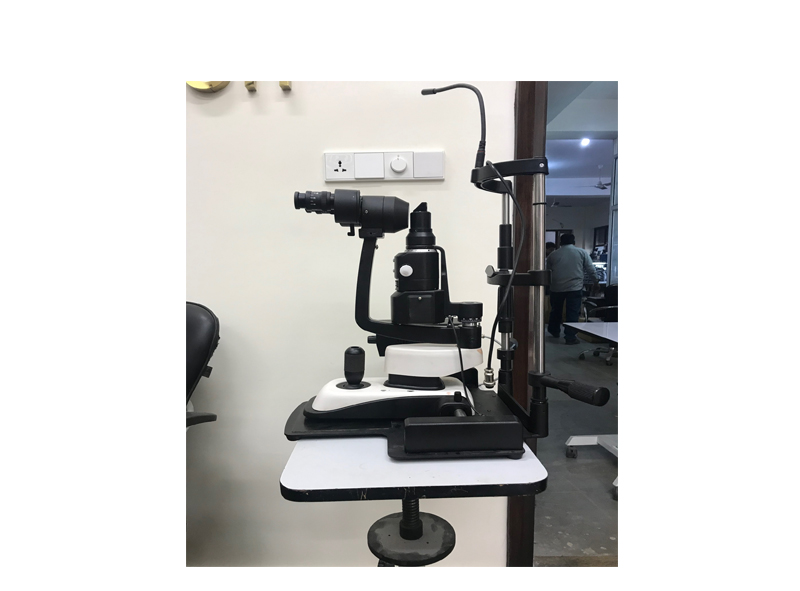

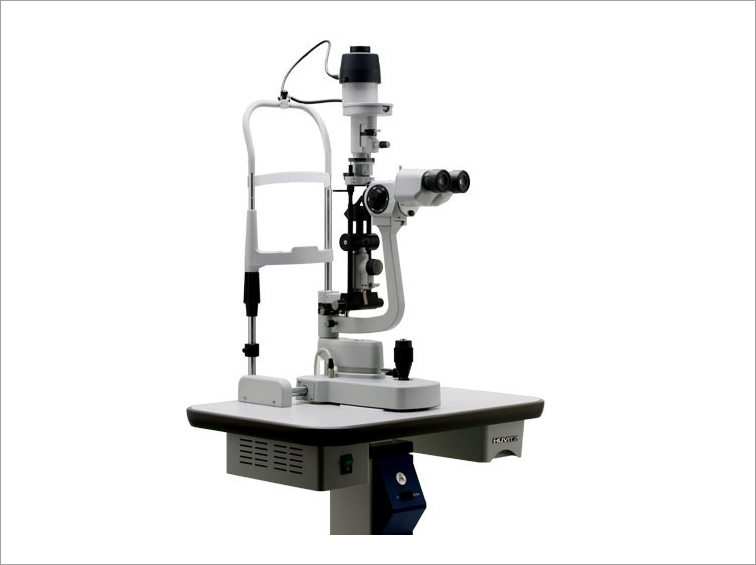

| Classic Slit Lamp |
|
| Magnification |
8x, 12x, 20x with 10x eyepieces |
| Field of view diameter |
25 … 10 mm |
| Eyepiece magnification |
super high-eyepoint eyepieces 10x compensation of ametropia ±8 D |
| Width of slit image |
continuous from 0 to 14 mm |
| Length of slit image |
in steps 0.5 / 3.5 / 8 / 14 mm;
continuous 1 … 14 mm |
| Rotation of slit image |
continuous ±90° |
| Decentration of slit image |
±4° horizontally,
click stop at 0° |
| Swivel range of slit projector |
180°, scale for angular difference;
click stop at 0° |
| Angle of incidence |
0° |
| Filters |
blue, green (red-free); heat-reflecting filter, permanently integrated; diffusing screen,
swing-in; UV protective filter;
barrier filter (yellow) |
| Free working distance exit prism/ patient's eye |
73 mm
2.9 in |
| Travel of instrument base |
30 mm (vertical), 110 mm (lateral), 90 mm (axial) 1.2 in (vertical), 4.3 in (lateral), 3.5 in (axial) |
| Vertical travel of headrest |
59 mm
2.3 in |
| Projection illumination |
6 V / 10 W halogen lamp |
| Brightness |
continuously adjustable |
| Rated voltage |
100 … 240 V ±10 %, self-sensing, 50 / 60 Hz |
| Weight |
basic instrument 9.75 kg (21.49 lbs)
headrest 1.25 kg (2.76 lbs) |
Dimensions of basic instrument
(W x H x D) |
300 mm x 430 mm x 355 mm
11.8 in x 16.9 in x 13.9 in |
